4 X 8 500mm 10000mm Aluminum Honeycomb Panel Marine 4mm Sandwich Panel SGS

4 X 8 Marine China Manufacturer For Aluminum Honeycomb Panels

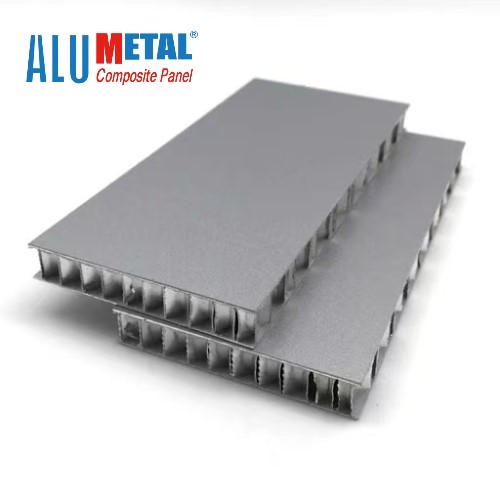

The honeycomb structure is known to be lightweight while enhance the rigidity of panels in a large scale. Aluminum honeycomb panels are comprised of two layers of aluminum sheets on top and bottom sides with inner aluminum honeycomb structure in the middle.

Aluminum Honeycomb Panel Features:

light Weight
Sound&Heat Insulation

100% Fire Resistance
Moisture & Corrosion Resistance

Super Flatness & Rigidity

Easy Installation

100% Recyclable & Environmental Protection

Aluminum Alloy	AA3003 H18, AA5052 H18
Total Panel thickness	4mm, 8mm, 10mm, 15mm, 25mm, Max 500mm
Aluminum Skin thickness	0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm
Coating:	PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc
Length:	2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm
Width:	1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm
Honeycomb Core Foil Thickness:	0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm
Honeycomb Core Cell Size:	Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8 ”(9.53mm), 1/2”(12.7mm), 3/4”(19.05mm), 4/5”(20.32mm), 1”(25.9m)
Honeycomb Core Cell Side Length:	Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm
Edge:	Close Edge, Open Edge

Click Below to Download Color Chart
Alumetal Color Chart.pdf

4 X 8 500mm 10000mm Aluminum Honeycomb Panel Marine 4mm Sandwich Panel SGS

FAQ

Q1.What is your MOQ,Delivery Time, Payment?

A1:1. MOQ (Minimum Order Quantity): 500m² but it can be less if we have stocks

2. Delivery Time: within 15 days after receiving deposit

4. Payment: 30% TT in advance ,70% against BL of copy or LC

Q2.Do you have any test certificates?

A2:Yes, stable good quality is key for long time business cooepration.

Factory have passed ISO9001:CE SGS, etc .

Q3.Do you service OEM?

A3: Yes, OEM accept. Just need to give us yours logo, we will send some protective film design for your choose

Q4.What's the available panel size and thickness?

A4: 1. Width: 1000-1575mm; 1220mm, 1250mm, 1500mm are recommended.

2. Length: accept custom length, recommend 2440mm, 3050mm, 4050mm, 5000mm

3. Panel Thickness:2mm-6mm; recommend 3,4mm

4.Aluminum thickness:0.05-0.5mm

Q5.Do you offer sample?

A5: Yes, samples are available if you are interested in our product
