    2mm Thick H18 48" Aluminium Honeycomb Board Mill Finish Sheet Material

    Ask Lasest Price
    Brand Name : Alumetal
    Model Number : ahp
    Supply Ability : 40000 Square Meter/Square Meters per Day
    Price : To be negotiated
    • Product Details
    • Company Profile

    2mm Thick H18 48" Aluminium Honeycomb Board Mill Finish Sheet Material

    10mm Aluminum Honeycomb Panels Price For Boat Building

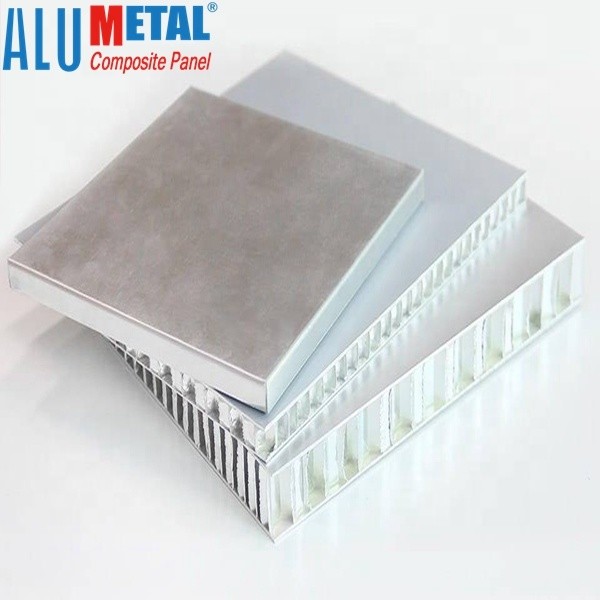

    Aluminum honeycomb panel is a honeycomb sandwich panel with honeycomb structure as the core, which is inspired by natural hexagonal honeycomb. This makes the honeycomb aluminum sheet a new type of energy-saving, environmentally-friendly and healthy material.

    Aluminum honeycombs are widely used in motorsports, marine and aerospace industries, and are now increasingly used in the construction industry, where it is essential to reduce weight while maintaining or increasing the strength of composite materials.

    Aluminum AlloyAA3003 H18, AA5052 H18
    Total Panel thickness4mm, 8mm, 10mm, 15mm, 25mm, Max 500mm
    Aluminum Skin thickness0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm
    Coating:PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc
    Length:2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm
    Width:1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm
    Honeycomb Core Foil Thickness:0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm
    Honeycomb Core Cell Size:Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8
    ”(9.53mm), 1/2”(12.7mm), 3/4”(19.05mm), 4/5”(20.32mm), 1”(25.9m)
    Honeycomb Core Cell Side Length:Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm
    Edge:Close Edge, Open Edge
    Click Below to Download Color Chart
    Alumetal Color Chart.pdf
    2mm Thick H18 48" Aluminium Honeycomb Board Mill Finish Sheet Material

    2mm Thick H18 48" Aluminium Honeycomb Board Mill Finish Sheet Material2mm Thick H18 48" Aluminium Honeycomb Board Mill Finish Sheet Material 2mm Thick H18 48" Aluminium Honeycomb Board Mill Finish Sheet Material

    2mm Thick H18 48" Aluminium Honeycomb Board Mill Finish Sheet Material

    2mm Thick H18 48" Aluminium Honeycomb Board Mill Finish Sheet Material

    2mm Thick H18 48" Aluminium Honeycomb Board Mill Finish Sheet Material

    FAQ

    Q1.What is your MOQ,Delivery Time, Payment?


    A1:1. MOQ (Minimum Order Quantity): 500m² but it can be less if we have stocks

    2. Delivery Time: within 15 days after receiving deposit


    4. Payment: 30% TT in advance ,70% against BL of copy or LC


    Q2.Do you have any test certificates?


    A2:Yes, stable good quality is key for long time business cooepration.


    Factory have passed ISO9001:CE SGS, etc .


    Q3.Do you service OEM?


    A3: Yes, OEM accept. Just need to give us yours logo, we will send some protective film design for your choose


    Q4.What's the available panel size and thickness?


    A4: 1. Width: 1000-1575mm; 1220mm, 1250mm, 1500mm are recommended.


    2. Length: accept custom length, recommend 2440mm, 3050mm, 4050mm, 5000mm


    3. Panel Thickness:2mm-6mm; recommend 3,4mm


    4.Aluminum thickness:0.05-0.5mm


    Q5.Do you offer sample?


    A5: Yes, samples are available if you are interested in our product
